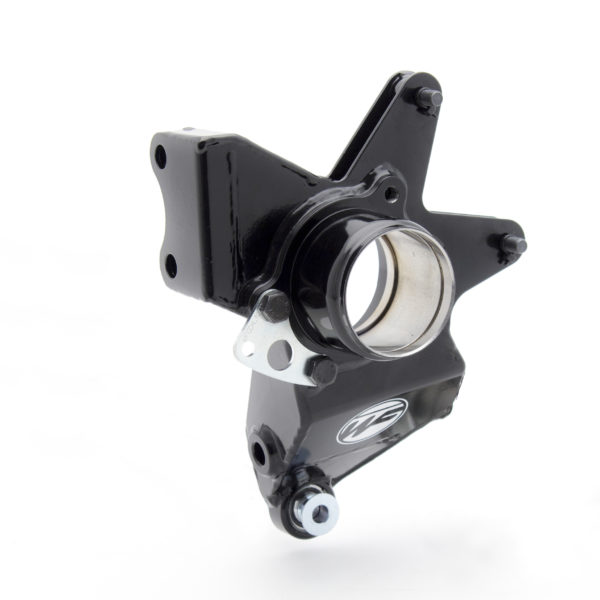

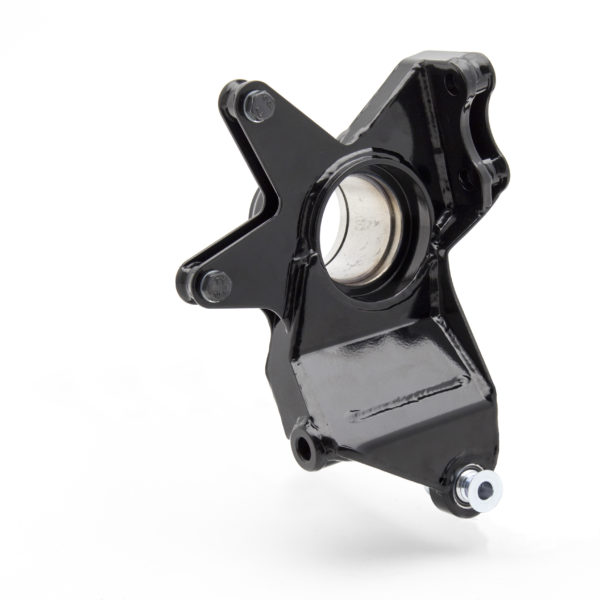

WISEFAB Stub axle set rear for Impreza 1993-2007

Weight

-1kg lighter than the original steering knuckle / strength and stiffness nevertheless enormous!

Roll center correction

-50mm on the steering knuckle

2000 – 2007 The wheel bearing WRX / STI 72x42x52 must be used

-Either a 5×100 hub (28462FE001) or a 5×114.3 hub (28462FE011) can be used. Both are for STI / WRX 72x42x52 wheel bearings

The brake calipers are brought into the vertical position.

In the original solution, the rear brake caliper is attached to the dust cover. The Wisefab solution thus offers greater rigidity for the brake caliper.

OEM handbrake fitmet
OEM handbrake can be used, but the brake caliper tabs need to be removed for clearance

CrMo sphericals
Traction link bushing replaced with spherical bearing

Kit includes:

Knuckles with hardware
Installation guide
