Subaru WRX/STI Performance Top-Mount Intercooler Kit 02-07

Installation Torque Specs 27 in-lbs (3N*M) recommended for all t-bolt and constant tension t-bolt clamps. These clamps have an operating range of 18-35 in-lbs (2-4N*M). Do not exceed the maximum torque rating of 35 in-lbs (4N*M).

22 in-lbs (2.5N*M) recommended for all worm-gear clamps. These clamps have an operating range of 18-27 in-lbs 2-3N*M. Do not exceed the maximum torque rating of 27 in-lbs (3N*M).

Silicone Couplers (5) Silicone Hoses and Couplers
(1) Intercooler to throttle body coupler

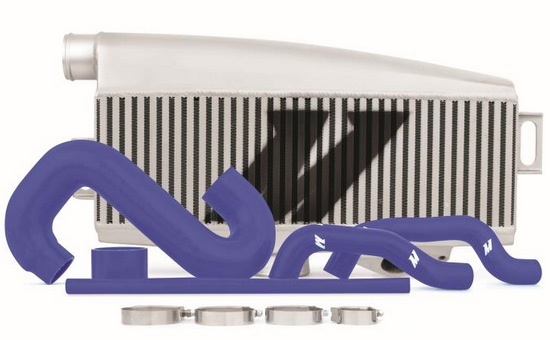

Purchase Includes 1 – Bar-and-Plate Intercooler
5 – Silicone Hoses and Couplers
1 – High temp silicone ñS hose
4 – T-Bolt Clamps
2 – 3 T-bolt Clamps
1 – 2.75 T-bolt Clamp
1 – 2.25 T-bolt Clamp
1 – Bypass Valve Gasket
1 – Black Nylon Hose Fitting, 3/4 I.D.
1 – Black Nylon Tee Hose Fitting, 3/4 I.D.
1 – WRX specific BPV hose
1 – STI specific BPV hose
1 – Intercooler to throttle body coupler
1 – PCV hose

Note This kit is rated for approximately 350 whp, or 25 psi of turbo boost. Exceeding these horsepower or pressure limits may require a larger front-mount intercooler. This intercooler kit will not fit RHD vehicles.

High Temp Hose Specs:
1.81 I.D. / 2.20 O.D. – On turbo outlet
2.20 I.D. / 2.60 O.D. – After turbo oulet
5 Hose thickness
Withstands up to 400°F (204°C) temps
Fits on turbos with 1.97 (50) maximum compressor outlet size
Reinforced with 7 internal steel rings for increased durability

Constant Tension T-Bolt Clamps Specs (2) 3″ T-bolt Clamps
(1) 2.75″ T-bolt Clamp
(1) 2.25″ T-bolt Clamp

Core Thickness 89 mm

Hot-Side Intercooler Pipe Specs –1.81″ I.D. / 2.20″ O.D. – On turbo outlet
–2.20″ I.D. / 2.60″ O.D. – After turbo oulet
–5mm Hose thickness
–Withstands up to 400°F (204°C) temps
–Fits on turbos with 1.97″ (50mm) maximum compressor outlet size
–Reinforced with 7 internal steel rings for increased durability

PCV Hose Specs 17.5″ length
.45″ I.D.
.75″ O.D.
4mm thick

Intercooler/Throttle Body Coupler Specs 2.125″ length
2.75″ I.D.
3.00″ O.D.
4mm thick

STI BPV Hose Specs 1.16″ – 1.30″ I.D.
1.56″ – 1.70″ O.D.
5mm hose thickness

WRX BPV Hose Specs 1.16″ – 1.30″ I.D.
1.56″ – 1.70″ O.D.
5mm hose thickness

Engine Codes EJ20 EJ25

02–07 Subaru WRX
04–07 Subaru STI
